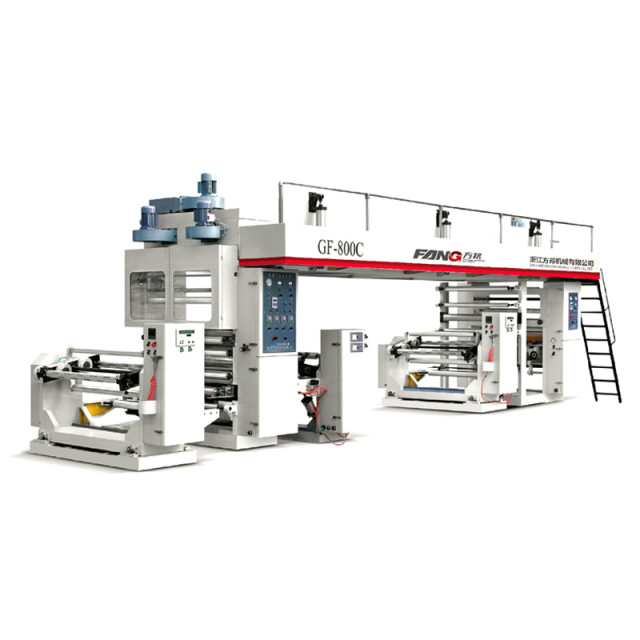

C Series Dry type laminating machine

This machine is suitable for the double-layer or multiple-layer lamination of such roll film material as BOPP, PET, nylon, CPP, CPE, aluminum foil and paper, etc.

1. Coating and laminating of main machine are of double-shaft synchronous frequency conversion and feedback control.
2. Thickness of glue coating can be chosen by mesh of anilox roller and doctor blade.
3. Auto tension controller for three section constant tension control.
4. Turret type unwinding station, pre-tension control for non-stop shaft exchange.
5. Unwinding station equipped with EPC system.
6. Turret type rewinding station, pre-tension control for non-stop shaft exchange.
7. Movable doctor blade with pneumatic back pressure.
8. Three independent constant temperature section drying system with heating tube and strong air fans for air in feeding and exhaust, to ensure the full dryness of web.
9. Pneumatic lifting drying channel and operating platform for web passing, active synchronous running leading roller inside drying channel.
10. Pre-heating before laminating, water cooling roller for laminated web.
11. Inflatable Air Shaft for web loading/unloading.
12. Three rollers nip laminating method, laminating pressure more even to ensure higher peel strength.

Fangbang is continuously seeking for development of their products. For this reason, Fangbang reserves the right to supply the improved product without advance notice.
