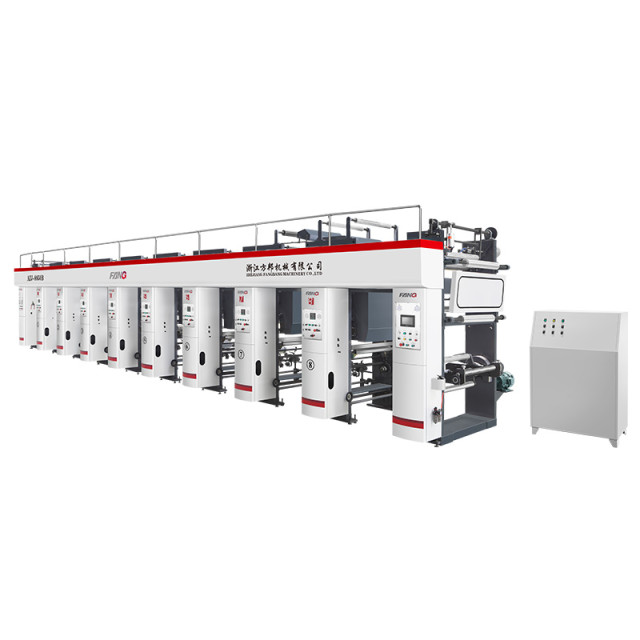

AZJ-B Rotogravure printing machine 3 motor

This machine is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing performance as BOPP, PET, PVC, PE, aluminum foil and paper, etc.

1、Every control module of the automatic color register system is equipped with microprocessor and can correct  the deviation of color register quickly and accurately .
2、main motor equipped with frequency converter for speed regulation .
3、Double arm type of turret for unwinding , non-stoping to splicing material .
4、Infeed of Unwinding adopts frequency converter for increase speed , closed-loop tension control system .
5、Outfeed of Rewinding adopts frequency converter for increase speed , closed-loop tension control system .
6、Unwinding tension adopts PLC taper tension control.
7、Closed oven and independent heating hot air blowing system,automatic constant temperature system .
8、Pneumatic impressing system and pneumatic doctor blade system .
9、Diaphragm-type pneumatic ink auto circulating system
10、inflatable air shaft for unwinding/rewinding material loading .
11、printing linear speed and meter counting display .
12、shaftless printing cylinder loading device.Printing cylinder is fixed by shaft-less air chuck.
13、Option: web video

Fangbang is continuously seeking for development of their products. For this reason, we reserves the right to supply the improved product without advance notice.
